SIC :- 3826 ; NAICS:-334516 ; ISIC:2651
Businesses and Individuals that require fast and effective printing of tickets or receipts: parking meters, parking systems, unattended terminals, information kiosks, electronic weighing scales, POS terminals, ATM machines, industrial machinery , diagnostic instruments, etc.
Cost-Efficiency

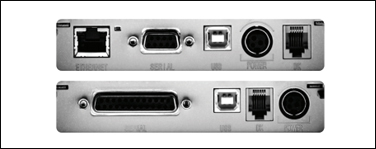

All in one Plus™ Interface
* Triple Interface
USB V2.0 FS + Ethernet + Serial
* Dual Interface
USB V2.0 FS + Serial
USB V2.0 FS + Parallel
USB V2.0 FS + SD
- Paper saving mode, reducing the
length of a receipt up to 25%

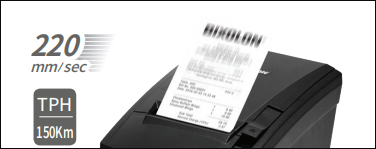

Reliable Printing Performance
Printing speed up to 220 mm/sec
High reliability mechanism :
150 km TPH & 1.5 Million cuts Auto
Cutter
203 dpi supported

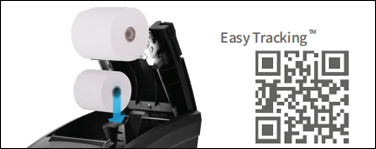

User-friendly Design
Stand-alone or space-saving wall-mount use
2" or 3" paper choice
2 inch partition included
Anti-jam guide
Easy Tracking™ supports a QR code linking to the
technical support micro site on a unique label
plate found on the bottom of the printer

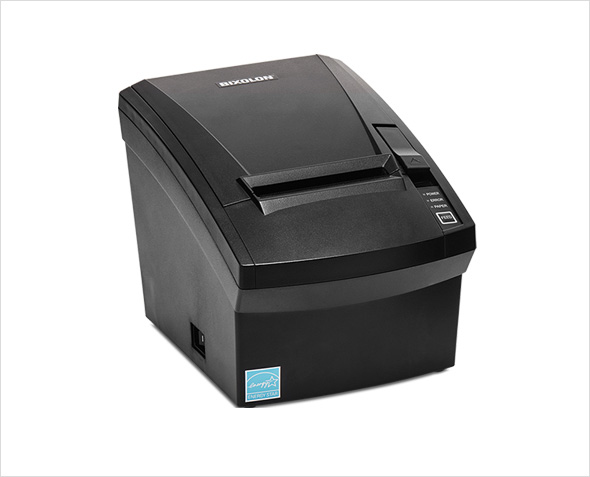

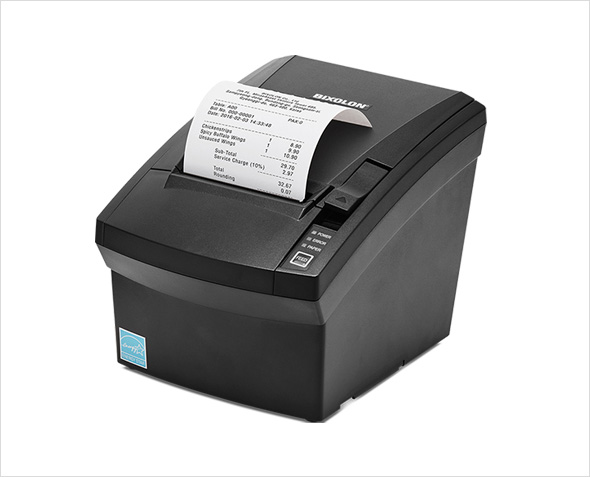

Model No. : SRP-330II
3 inch Thermal POS Printer
3 inch POS printerr
Target Audience Profile:
SIC :- 3826 ; NAICS:-334516 ; ISIC:2651
Businesses and Individuals that require fast and effective printing of tickets or receipts: parking meters, parking systems, unattended terminals, information kiosks, electronic weighing scales, POS terminals, ATM machines, industrial machinery , diagnostic instruments, etc.
Cost-Efficiency
All in one Plus™ Interface* Triple Interface
USB V2.0 FS + Ethernet + Serial
* Dual Interface
USB V2.0 FS + Serial
USB V2.0 FS + Parallel
USB V2.0 FS + SD
- Paper saving mode, reducing the
length of a receipt up to 25%
Reliable Printing Performance
Printing speed up to 220 mm/secHigh reliability mechanism : 150 km TPH & 1.5 Million cuts Auto Cutter
203 dpi supported
User-friendly Design
Stand-alone or space-saving wall-mount use2" or 3" paper choice
2 inch partition included
Anti-jam guide
Easy Tracking™ supports a QR code linking to the technical support micro site on a unique label plate found on the bottom of the printer
Specifications
Printer Specifications
Print MethodDirect Thermal
Print Speed
Up to 220 mm/sec
Print Resolution
SRP-330II: 180 dpi
SRP-332II: 203 dpi
Print Width
Up to 72 mm
Sensor
Paper End, Cover Open
Media Characteristics
Media TypeReceipt
Media Width
80 mm
Optional 58 mm (N type)
Media Roll Diameter
Up to 80 mm
Media Thickness
0.05 ~ 0.08mm
Supply Method
Easy Paper Loading
Physical Characteristics
Dimensions (WxlxD}145 x 198 x 146 mm
(5.72 x 7.79 x 5.74 inch)
Weight
1.37 kg (3.02 lbs.)
Electrical
EnergyStar Certified, External Power Adaptor 100-240V AV, 50/60Hz
Drawer Port
2 ports (via y-type adaptor)
Performance Characteristics
NV Image Memory768 Kbytes (Mono)
Receive Buffer
4 Kbytes
User Define Buffer
12 Kbytes
Interface
① USB V2.0 FS + Ethernet + Serial
② USB V2.0 FS + Serial
③ USB V2.0 FS + Parallel
④ USB V2.0 FS + SD
Environment Characteristics
TemperatureOperating: 0 ~ 40℃ (32 ~ 104℉)
Storage: -20 ~ 60℃ (-4 ~ 140℉)
Humidity
Operating: 10 ~ 80% RH
Storage: 10 ~ 90% RH
Reliability
Thermal Print Head (TPH)150 km
Auto Cutter
1.5 Million Cuts
*** Specified Paper
- TF50KS-E (Paper thickness: 65μm)
: Nippon Paper industries Co., Ltd.
- PD 150R (Paper thickness: 75μm)
: New Oji Paper Mfg, Co., Ltd
- PD 160R (Paper thickness: 75μm)
: New Oji Paper Mfg, Co., Ltd.
- P350 (Paper thickness: 62μm)
: Kansaki Specialty Paper, Inc. (USA)
Software
EmulationBXL / POS
Driver / Utility
Windows Driver, OPOS / JPOS Driver,
Linux / Mac CUPS Driver,
Virtual COM USB / Ethernet Driver,
Utility Program
SDK / Plugin
Android / iOS / Windows SDK, Linux SDK, Xamarin SDK, Chrome SDK, Cordova Plugin
Application
mPrint App (iOS)
Fonts / Graphics / Symbologies
Character SizeFont A: 12 x 24 Font B: 9 x 17 Font C: 9 x 24 KOR, CHN, JPN: 24 x 24
Characters Per Line
SRP-330II: - Font A: 42 Font B, C: 56 KOR, CHN, JPN: 21
SRP-332II: - Font A: 48 Font B, C: 64 KOR, CHN, JPN: 24
Character Sets
Alphanumeric: 95
Extended Graphics:128 x 33 page
International: 32
Graphics
Supporting user-defined fonts, graphics, formats, and logos
Barcode Symbologies
1D: Coda Bar, Code39, Code93, Code128, EAN-8, EAN-13, ITF, UPC-A, UPC-E
2D: Data Matrix, PDF417, QR Code
Accessories
Standard2 inch Partition (58 mm), USB A-B Cable 1.8m
Optional
External buzzer, B-Melodist
